A review workspace, not a layout editor
PCBAtlas focuses on viewing, inspection, revision organization, and delivery. Layout edits still belong in KiCad, Altium, or another dedicated EDA tool.
Mac PCB viewer
View and review PCB files locally on Mac.

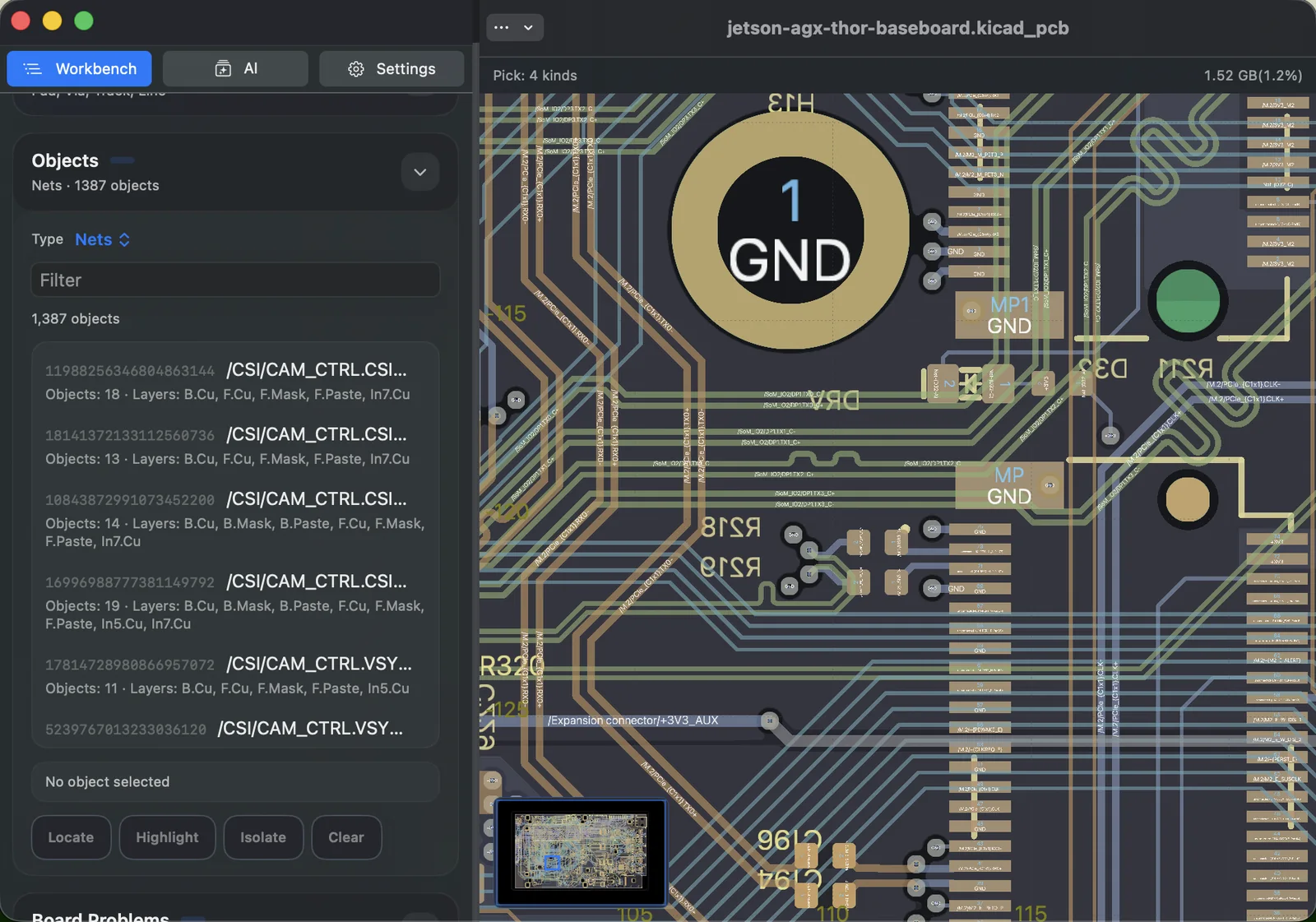

PCBAtlas is a local PCB viewer and review workspace for Mac. Import KiCad projects, board files, DSN, ODB++, and IPC-2581 data, inspect details in 2D and Info, and keep related revisions in one managed workspace.
Inspect native board data, compare revisions, and prepare a handoff on Mac without first uploading source files to a browser service.
Built for real handoff data
Beyond KiCad board files, PCBAtlas covers DSN, ODB++, IPC-2581 XML, and recognized manufacturing package folders for design review and manufacturing handoff.
One flow across desktop and mobile
Organize and deliver workspaces on Mac, then continue review on iPhone, iPad, or Android when the board needs to move with you.
PCBAtlas
One Mac review workspace for several PCB source families
Use the native source when possible, preserve manufacturing packages as a set, and keep later handoffs as revisions.
| Source | How PCBAtlas handles it | What you can review |
|---|---|---|
| KiCad | Project, schematic, board, folder, or supported archive | Design context, schematic sheets, PCB objects, layers, and revisions |
| DSN | Import as design-side data | Board geometry and the supported design context stored in the workspace |
| ODB++ | Import the complete recognized archive or directory | Manufacturing layers, objects, summaries, source package, and revisions |
| IPC-2581 XML | Choose design-side or manufacturing-side intent during import | Supported board data, document context, and revisions |
| Gerber / Excellon Drill | Import a recognized manufacturing folder or archive | Related artwork and drill context as a combined PCB package |
PCBAtlas
Continue with a related workflow
Compare the same format on another platform or move to an adjacent design or manufacturing-data guide.
PCBAtlas
FAQ
The fastest way to reduce confusion is to say the boundaries and paid unlocks plainly.
Can PCBAtlas view ODB++ and IPC-2581 on Mac?
Yes. Current import paths include ODB++ archives or directories and IPC-2581 XML. Large inputs may take longer to import.
Does PCBAtlas upload PCB files to a web viewer?
No for the core viewer path. PCBAtlas is local-first; optional AI capabilities depend on your configured AI service and sharing settings.
Is the Mac version free to start?
Yes. You can import and review for free and keep up to three PCB workspaces. Plus unlocks unlimited workspaces, export, and delivery paths.
